L.O.A. 44’ 6”
L.W.L. 41’ 0”
BEAM 14’ 10”
L. 0. D. 42’ 6”
L. SPARRED 62’ 0”
DRAFT 2’ 7”/6’ 7” (centerboard down)
DISPLACEMENT 21,250 lbs.
BALLAST 7,000 lbs. lead, internal
SAIL AREA 816 sq. f t.

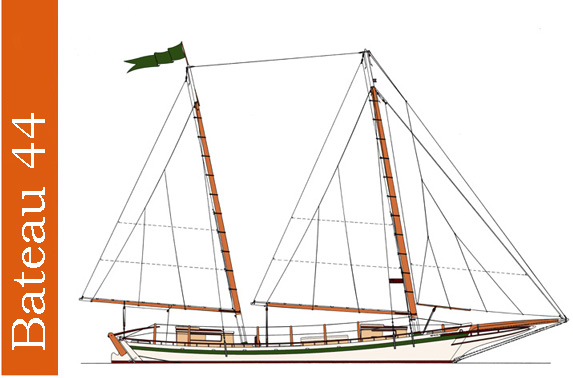

TYPE Three‑sail bateau. Diesel auxiliary 22 passenger charter boat for
the Florida Keys. Sailed by captain and one crew.
CONSTRUCTION Cold‑molded plywood/epoxy covered with epoxy‑impregnated
Xynole‑polyester cloth. Linear‑polyurethane finished.
PLANS Full construction plans are available, which include construction
manual THE NEW COLD-MOLDED B0ATBUILDING, Construction Notes and
Construction Details. As the hull is built around her bulkheads, large‑scale bulkhead drawings are included with the plans. Plans are very thorough (13 pages) and include information for building to USCG specifications
