L.B.P. 57’
L.O.D. 55’
L.W.L. 52’
BEAM 17’ 4”
DRAFT 2’ 10”/7’ 2” (centerboard down)
DISPLACEMENT 34,000 lbs
BALLAST 12,000 lbs
SAIL AREA 1,400 sq. f t.

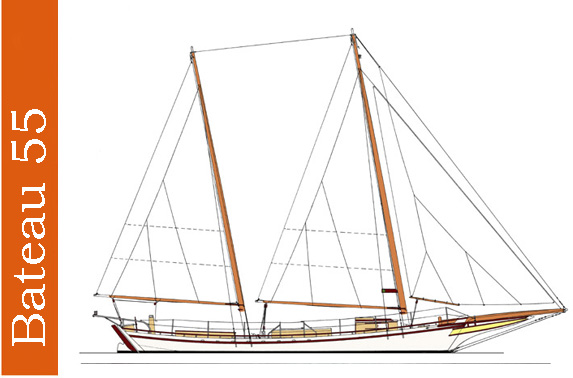

TYPE Three‑sail bateau. Diesel auxiliary passenger
charter boat for the Florida Keys. Sailed by captain and one crew.
CONSTRUCTION Aluminum, Steel or Cold‑molded plywood/epoxy
covered with epoxy‑impregnated Xynole‑polyester cloth.
PLANS Full construction plans (incomplete at this time)
include the Construction Manual THE NEW COLD-MOLDED
B0ATBUILDING, Construction Notes and Construction Details.
DESIGN Reuel B. Parker

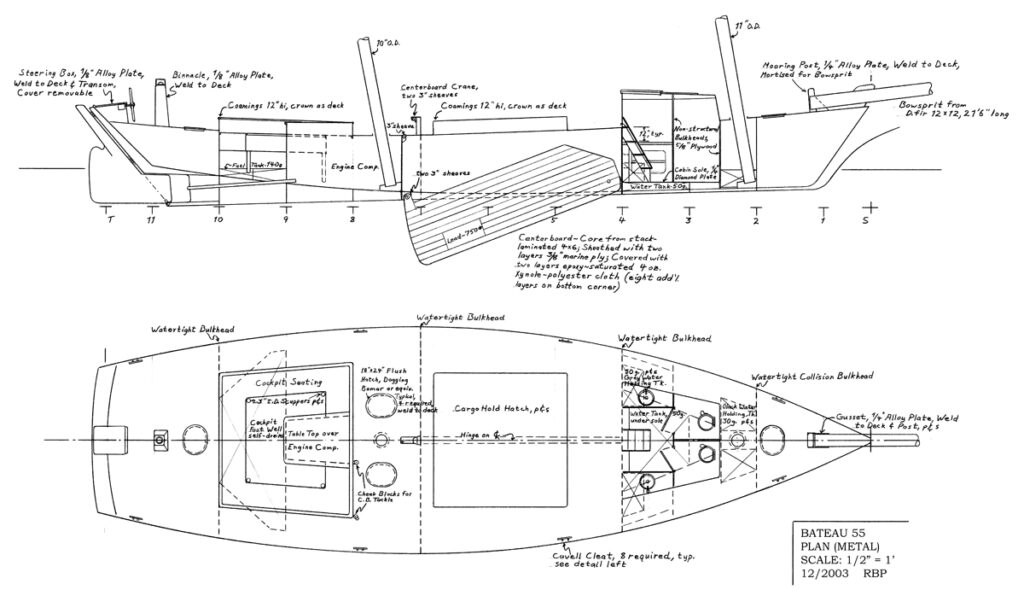

OPTIONS Plans are for cold-molded plywood/epoxy/Xynole construction, with minimal detail in Plan and Inboard Profile views. While this vessel was initially intended for aluminum construction, no drawings have been completed for that method.
