L.O.A. 38′ 5″
L.O.D. 33′ 4″
L. EXT. 46′ 2″
L.W.L. 28′ 9″
BEAM 11′ 9″
DRAFT 5′ 5″
DISPL. 18,350 lbs
BALLAST 6,500 lbs lead—Inside 2,475 lbs. to trim Outside 4,025 lbs.

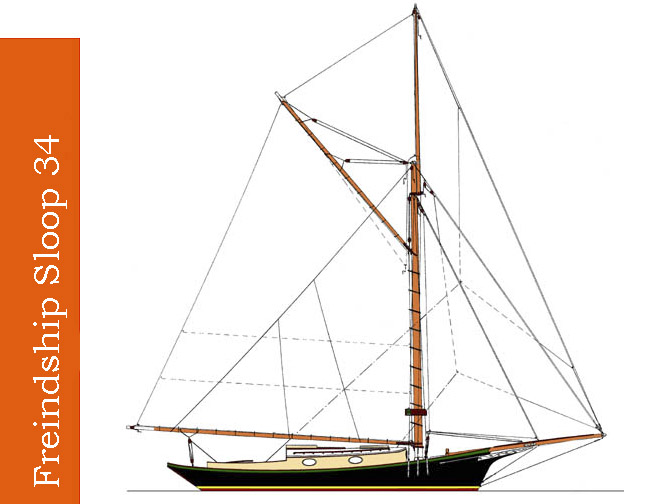

TYPE Cruising yacht — gaff cutter with topmast/aux. power
POWER Inboard Diesel, 25 HP
SAIL AREA 1162.5 sq ft Total; 885 sq ft in lowers

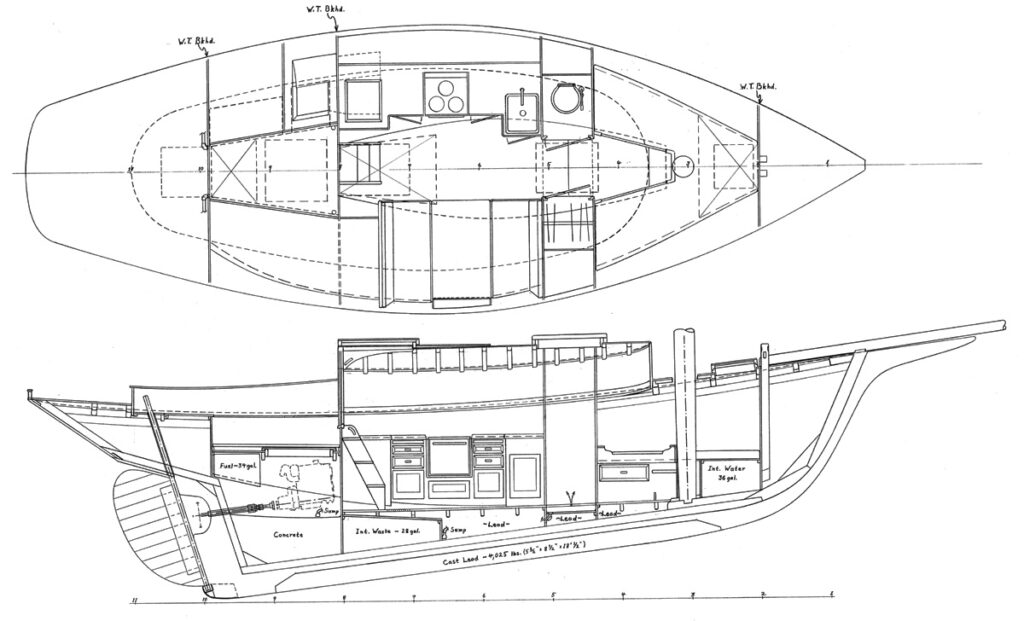

ACCOMMODATIONS Sleeps five (two in convertible dinette)
CONSTRUCTION Cold-molded wood. Hull: Double-diagonal 1/4″ marine plywood over 3/4″ tongue and groove. Deck: Two laminations marine plywood — 1/4″ over 3/8″. Sawn beams 2 1/2″x3″. All ext. wood fabric/epoxy covered, polyurethane painted.
OPTIONS Alternate interiors are available on a custom design basis. The vessel may also be built as a fisherman with fish hold or wet well (smack).
