L.O.D. 28’ 4”
L.O.A. 30’
L.W.L. 27’ 9”
BEAM 9’ 4”
DRAFT 3’ 3”
SAIL AREA 465 sq. ft.
DISPLACEMENT 11,300 lbs. (5.65 U.S. tons)
BALLAST 4,500 lbs.

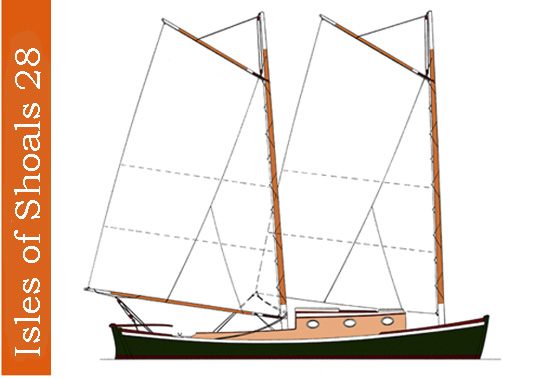

RIG Gaff rigged cat schooner with overlapping foresail
POWER Small diesel if desired. Vessel originally rowed from two or more stations; can be sculled also.
TYPE Double ended coastal fishing and cargo vessel. Very seaworthy open boat ‑‑ the model is a close cousin to the Block Island Cowhorn.

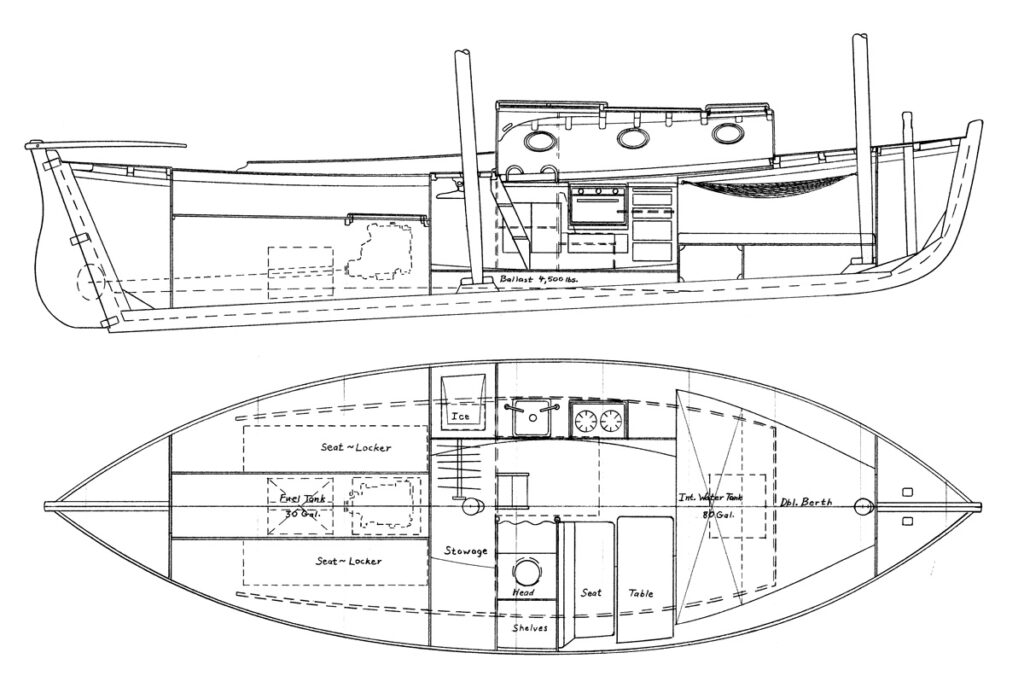

ACCOMMODATIONS These vessels were usually open boats, but can be decked with self‑bailing cockpit and trunk cabin between the masts to become an
extremely sea-worthy all‑weather/all‑oceans pocket cruiser for an
adventurous couple.
CONSTRUCTION Cold molded wood/epoxy/fabric: Hull ‑‑ double diagonal ¼” ply planks over 5/8” tongue and groove fir or yellow pine. All exterior surfaces and bilges covered with epoxy-impregnated Xynole‑polyester
cloth and painted with linear polyurethane. OR strip-plank OR lapstrake. OPTIONS Complete plans include the construction manual THE NEW COLD-MOLDED BOATBUILDING, From Lofting to Launching.
