| L.O.D | 24’9″ |
| L.W.L | 22’3″ |
| L.O.A | 25’5″ |
| BEAM | 8’2″ |
| DRAFT | 1’5″/3’10” |
| DISPLACEMENT | 3,500 |
| BALLAST | 1,000 lbs. lead and water |

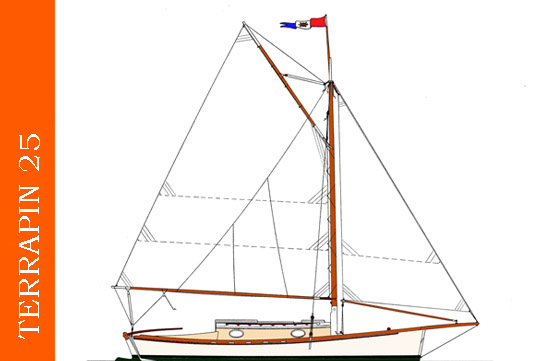

| RIG | Gaff Sloop, Mast in Tabernacle |
| POWER | Outboard in well or inboard diesel |
| TYPE | Trailerable Centerboard Sloop |
| ACCOMMODATIONS | Layout shown sleeps three adults in a settee berth and double-V-berth; a small settee berth sleeps a child. Large top-loading ice box. 4’1″ headroom. Drop leaf table seats five and doubles as chart table. |
| CONSTRUCTION | QUICK-MOLDED: Epoxy/fabric covered laminated plywood. Bottom: Double diagonal 3/8″ x 12″ x 8′ plywood planking over longitudinal stringers and partial backbone. Sides 1/2″ plywood joined with butt blocks. Spars: Hollow laminated Douglas fir. Interior: Painted plywood trimmed with hardwoods. |
