Exuma 27


SKU: EXUMA27 Categories: , Tags: , , ,


L.O.D.                    27′ 2″

L.W.L.                     23′ 10″

L.O.A.                     27′ 7″

BEAM                     7′ 10″

DRAFT                    1′ 8.5″ board up / 4′ 1″ Board down

DISPLACEMENT     4,000 lbs.  (2 U.S.tons)

BALLAST                1,250 lbs. lead, internal

TYPE                      TRAILERABLE Shoal-bodied centerboard schooner

POWER                   Outboard on bracket or inboard diesel

RIG                        Marconi schooner with stem-head jib.  Mains’l and fores’l use full-length battens.  Equal-height masts are free standing.  The masts are stepped with the main boom and guys using the main sheet.

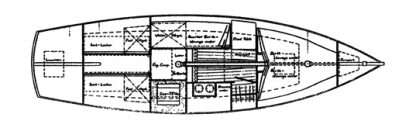

ACCOMMODATIONS The cabin sleeps three in a quarter berth and double-“V”- berth.  A large ice hold is top-loading from the cockpit. Headroom is 4’1″.  The saloon table seats three and doubles as a chart table.

CONSTRUCTION      Cold-molded wood/epoxy/fabric:  Bottom — double diagonal

marine ply planks (1/4″x6″) over 9/16″ tongue and groove planking laid fore and aft.  Sides — double laminated 1/4″ marine ply.  Decks — double laminated 1/4″ marine ply over    sawn beams.  Covering system — epoxy impregnated Xynole- polyester cloth finished with linear polyurethane paint systems.  Spars — masts and booms are solid Douglas fir. Interior — painted ply trimmed with varnished hardwoods.

OPTIONS                Complete plans include the construction manual THE NEW COLD MOLDED BOATBUILDING. Please write or call us for further information. Two sail plans include Marconi and gaff schooner rigs.
